Titanium Welded Concentric Tee
Materials Grade: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12
Surface: Piclking, Polished
MOQ:1PC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
The Titanium Welded Concentric Tee is a titanium alloy welded concentric tee for pipe branch connections, suitable for corrosive and demanding conditions, and conforms to ASME B16.5 / ASTM B862 standards.
Products advantages
Reliable Welded Structure: The structure is integrally welded, with a single-pass weld (1PC Seam). The weld undergoes 100% RT + 100% UT inspection, resulting in low stress concentration and stable pressure resistance.
High Dimensional Accuracy: Manufactured strictly according to ASME B16.5 standards, ensuring consistent port dimensions and concentricity.
Comprehensive Material Grade Range: Covering grades from Gr1/Gr2 (corrosion resistant) to Gr5/Gr12 (high strength), allowing for precise material selection based on media, pressure, and temperature.
Controllable Surface Cleanliness: Supports pickling or polishing to remove the weld oxide layer, reducing the risk of media contamination.
Production Process
Raw Materials: ASTM B862 titanium material undergoes incoming inspection; chemical composition and mechanical properties are traceable.
Forming: Precise blanking, welding, and control of branch angles and concentricity.
Finishing: CNC machining of ends and beveling ensures standard dimensions.
Surface Treatment: Pickling or polishing improves corrosion resistance and surface cleanliness.
Inspection: Welds are inspected 100% RT + 100% UT; MTR is provided with the shipment.
Titanium Products Description
Material: Titanium
Grade: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12
Standard: ASME B16.5
Materials Standard: ASTM B862
Type: Titanium Concentric Tee, Titanium Eccentric Tee
Processing: Welded
Surface Treatment: Piclking, Polished
Accept customized shape titanium welded concentric tee according detail drawing
1PC WELDING SEAM
100%RT, 100 UT, MTR
Titanium Materials Physical Properties
Titanium Materials Chemical Composition
Products Picture Show

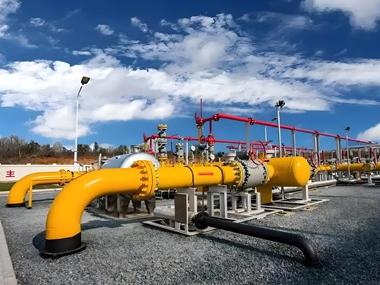

Application of Titanium Welded Concentric Tee
Titanium Weld tee used in ThesE areas
shipping and Packing
Packing: Standard Export Wooden Case
Delivery: FOB, DDU, EXW, CIF, DDP, DAP, DAT, FCA
fAQ
Q: Do you have ISO9001 approval?
A: -Yes, we are an Iso9001-2015 approval manufacture
Q: Do you process American and European Standard titanium welded concentric tee?
A: -Yes
Q: Do you process customized titanium grade welded concentric tee?
A: -Yes, customized grade acceptable, but we have a MOQ
Q: Do you process large OD titanium grade welded concentric tee?
A: -Yes, generally OD ＞5 inches, we process welded pipe and fittings, the big OD tube need customized, so big OD seamless concentric tee need wait longer time and more expensive than welded pipe fittings
Q: Do you support non-standard customization?
A: Yes, we produce according to customer drawings.
Q: Is the minimum order quantity flexible?
A: We support small batch and project orders.
Q: Is the delivery time stable?
A: The delivery time for standard specifications is controllable; customized parts are confirmed according to drawings.
Q: How is the transport protected?
A: Each item is individually protected to avoid damage to the ports and surfaces.
